Slitting Line For Sale

High Grade, Heavy Duty, Excellent Quality, Fully Refurbished.
Description
Slide show
Photos
Defined Photos
FAQ
Contact us

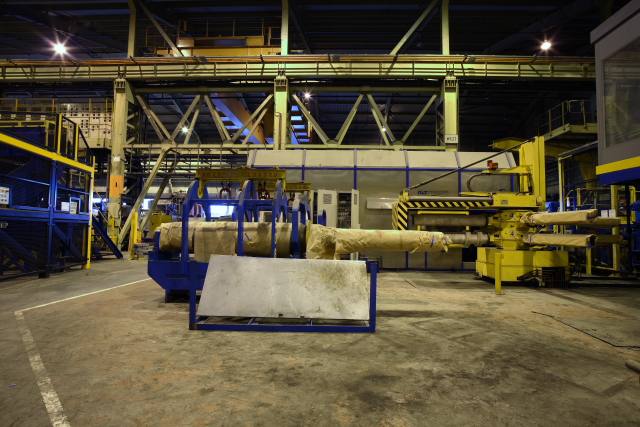

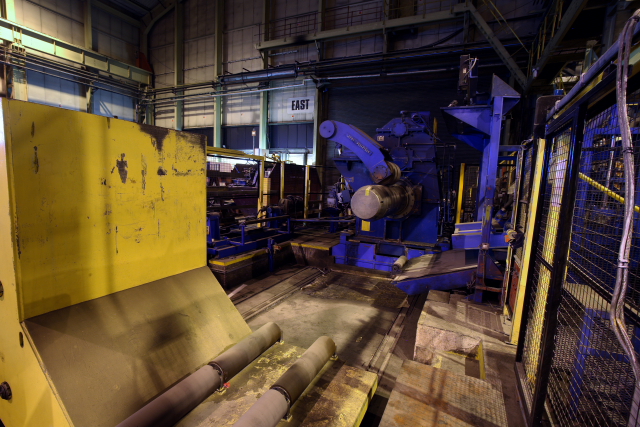

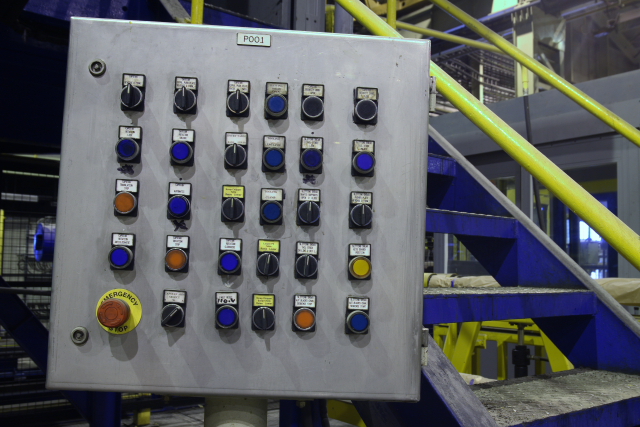

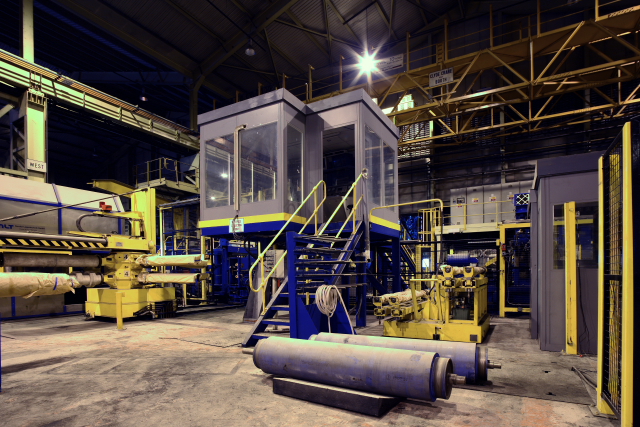

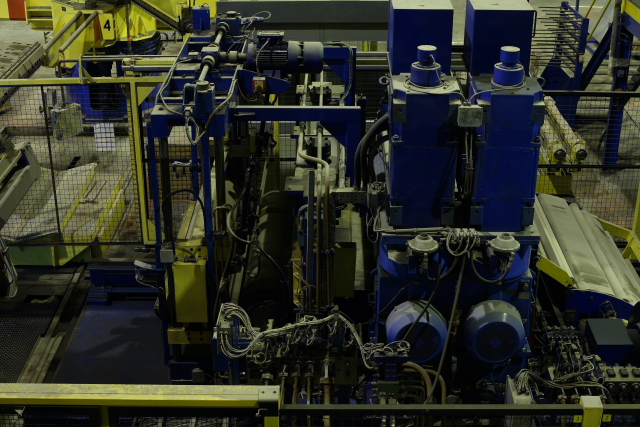

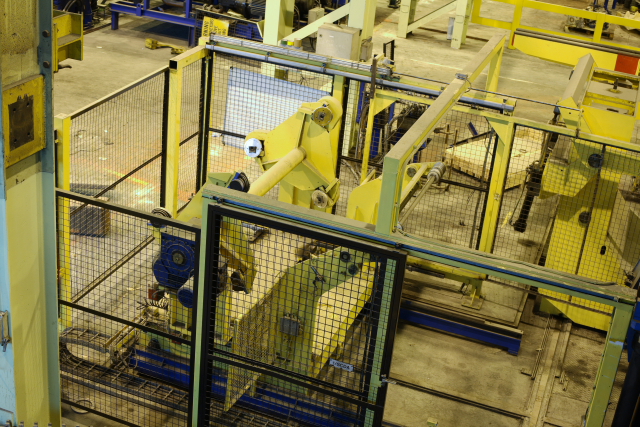

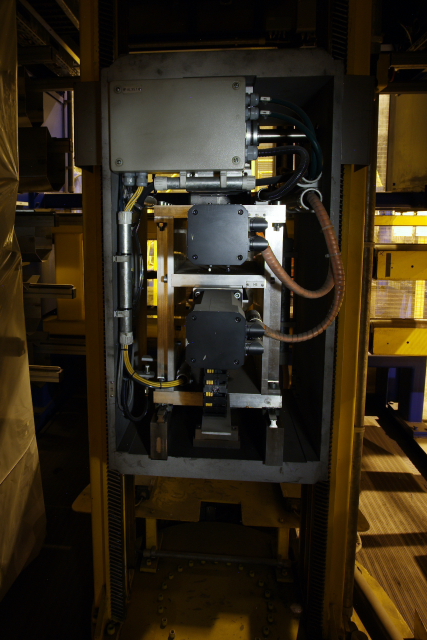

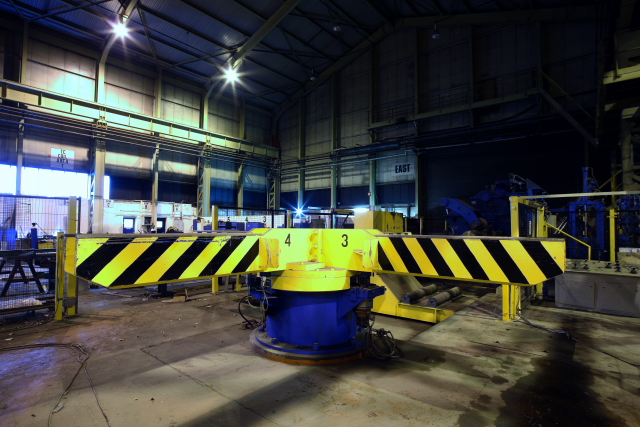

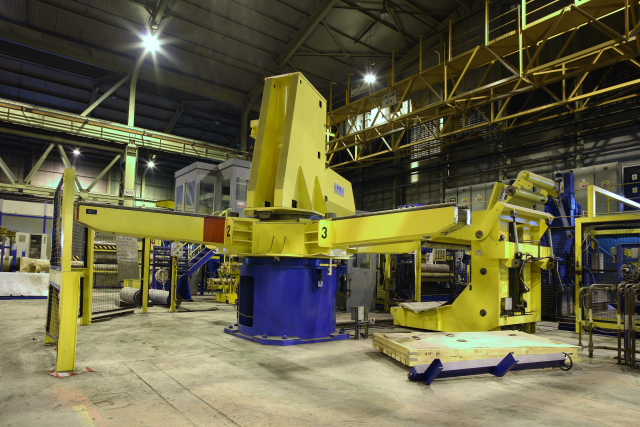

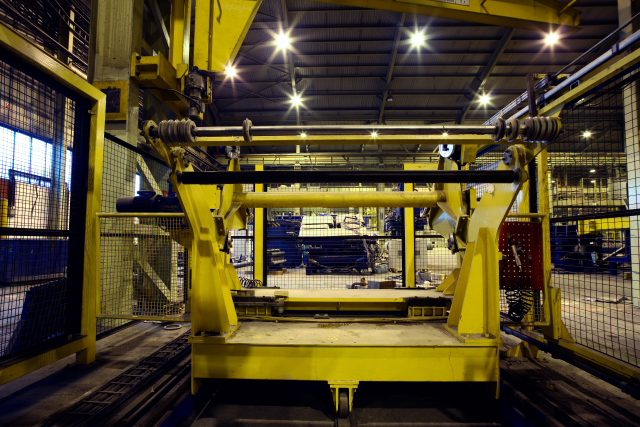

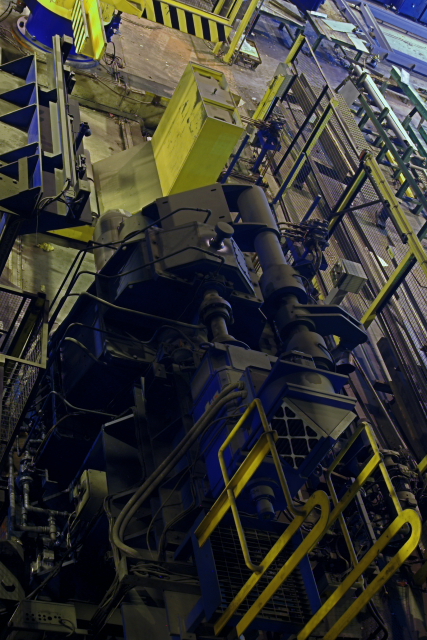

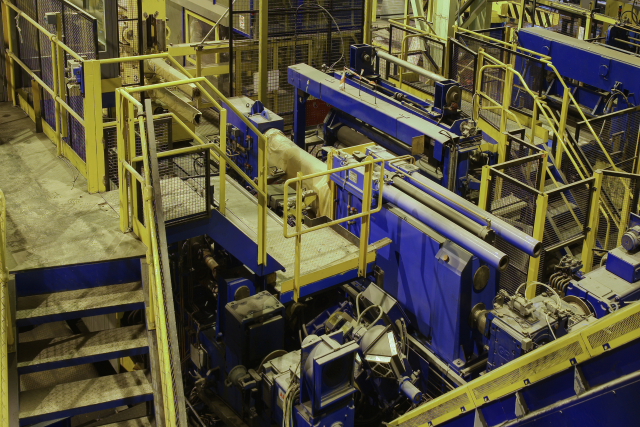

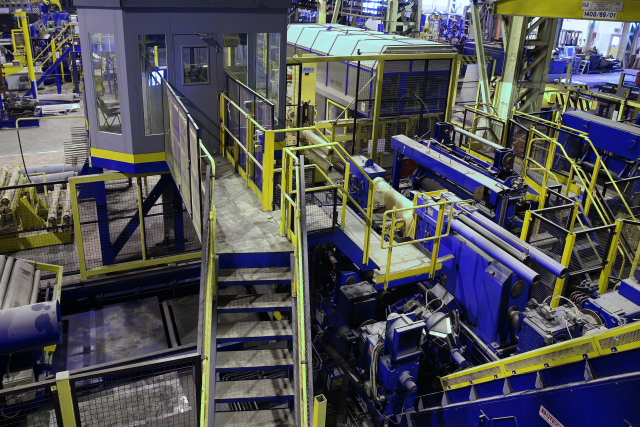

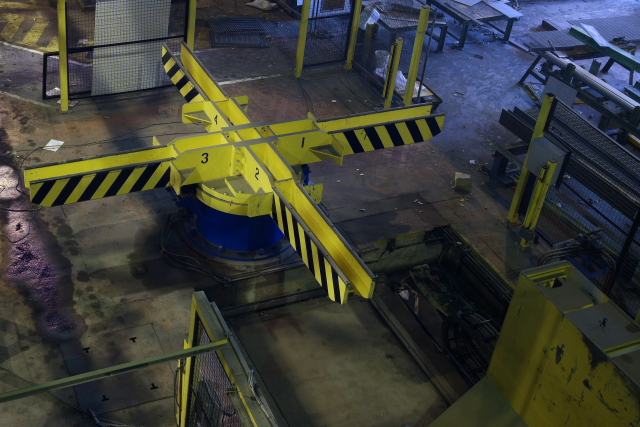

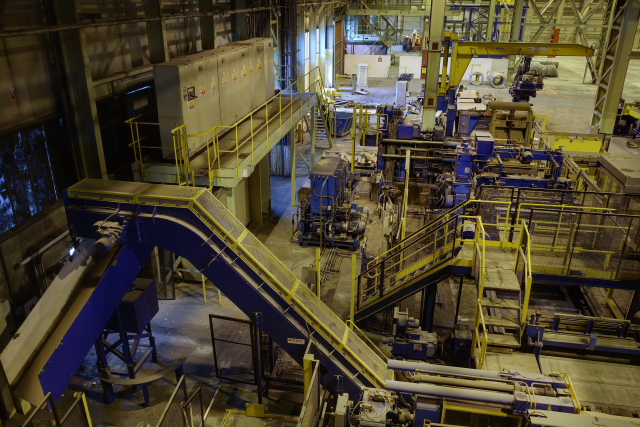

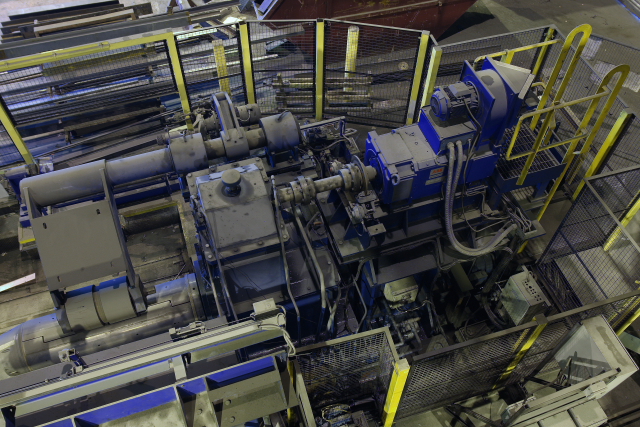

Photos of the Slitting Line


Photo 1
Photo 2

Photo 3
Photo 4

Photo 5
Photo 6

Photo 7
Photo 8

Photo 9
Photo 10

Photo 11
Photo 12

Photo 13
Photo 14

Photo 15
Photo 16

Photo 17
Photo 18

Photo 19
Photo 20

Photo 21
Photo 22

Photo 23
Photo 24

Photo 25

MACHINE SPECIFICATIONS

  • Maker: Fimi
  • Material: Stainless Steel 200/300/400 series in cold rolled or softened condition
  • Strip Width Range: 600mm - 1600mm
  • Gauge Range: 0.40mm - 3.25mm
  • Entry Coil Weight: 30,000kg
  • Maximum Entry Coil OD: 2100mm
  • Decoiling Mode: Under/Over
  • Exit Strip Width: 40mm - 1524mm
  • Exit Coil Weight: 30,000kg
  • Maximum Line Speed: 175/350m/min
  • Slitting Modes: Drive (loop) or Pull Through (Tight Line)
  • Tooling: Shimless

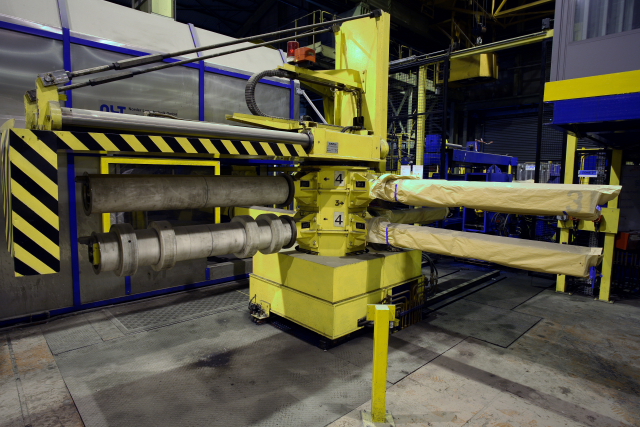

  • Slitting Head: AutoTool Change with 4 Capstan
  • Tool Setting: NLT and Robotic Tooling
  • Scrap Disposal: Butech Scrap Chopper
  • Plastic Applicator: Top Side Only
  • Paper Interleaver: 3 Position Carousel with Paper Cutting Knives
  • Strip Printer: Willet Ink Jet
  • Slitting Tolerances: Excellent - details upon request
  • Edge Burr: Within 5% of material thickness
